Precise voltage and current measurements

Recognition of fast charging modes: QC2.0, QC3.0, Huawei FCP, Huawei SCP, Samsung AFC, VOOC/WARP, SuperVOOC and MTK-PE

Monitoring of Power Delivery operation

PD protocol conversion

Data storage

Software update

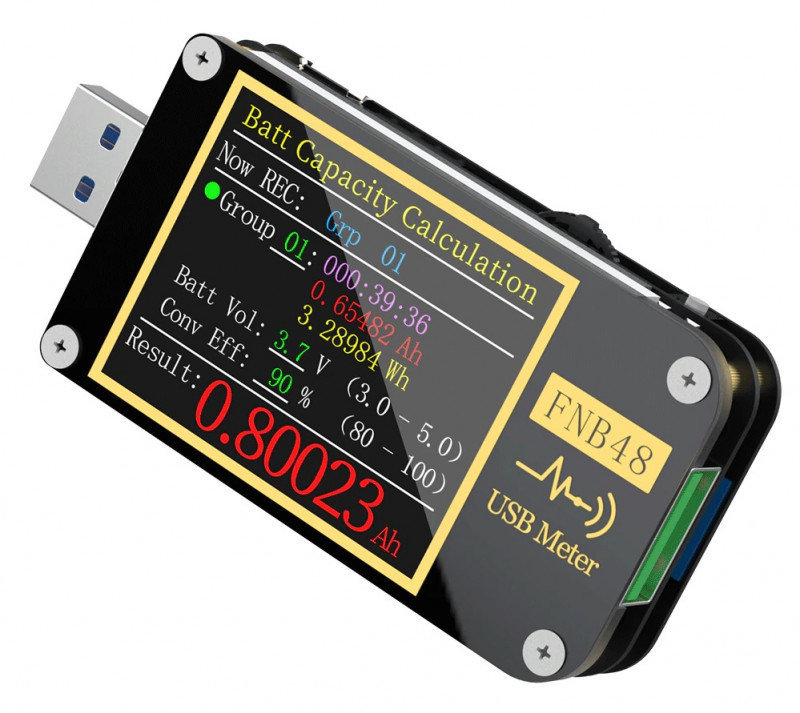

TFT LCD display 1.77"

2 control buttons

USB Type A connector

USB type A, micro USB, USB type C socket

Internal 16-bit ADC converter

Input voltage: 3.8 to 24 V

Input current: 0 to 6.5 A

Input power: 156 W

Internal resistance: 0 to 10 kΩ

D+/D- voltage: 0 to 3.3 V

Temperature measurement

Capacity: 0 to 10000 mAh

Energy: 0 to 10000 Wh

Operating time recording

Independent power supply

PD physical switch

Display orientation detection

Bluetooth communication

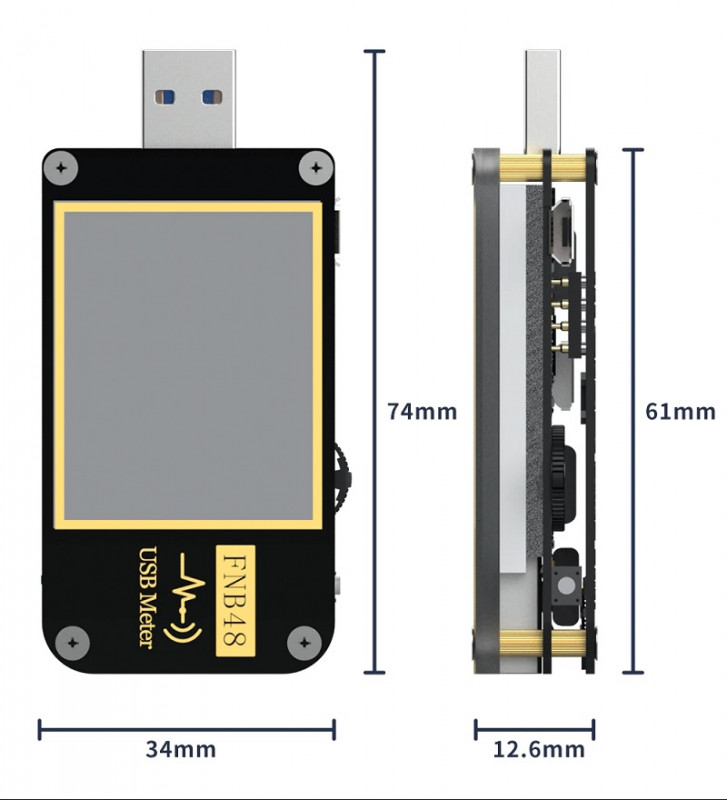

Dimensions: 73x38x14mm
